What is plastic tubing made of

Plastic Tubing: Plastic tubing can be made out of many different kinds of materials including, nylon, vinyl, polyurethane, polyethylene, among others. Plasticizer: A chemical added to a plastic to improve flexibility.

What is plastic tubing called?

Polyethylene is known in the industry as poly tubing or PE. Although it is not as flexible as polyurethane, it is still great at resisting moisture as well as cracks and other punctures. Due to its strength and durability, polyethylene is often used to create plastic bottles as well as corrosion-resistant pipes.

What is polyethylene tubing?

Poly tubing, often referred to as PE tubing or polyethylene tubing is a flexible, lightweight, durable and corrosion resistant plastic that can be used for a wide range of liquid, gas and fluid transfer applications. … Polyethylene tube is completely safe and is one of the most common PE tubing materials in the world.

What is clear flexible tubing made of?

Black GP70 tube is useful for outdoor applications, light-sensitive media, color coding of processing lines, and secondary containment of other lines. ClearFLEX™ 60NP — is made from a flexible PVC compound that is bovine-free and formulated with a non-DEHP, non-phthalate plasticizer.

What is PEX pipe made of?

PEX pipe is made from cross-linked HDPE (high density polyethylene). The HDPE is melted and continuously extruded into a tube to form a high-performing pipe suitable for a variety of potable and non-potable plumbing applications.

What is PVC tubing?

Polyvinylchloride (PVC) tubing is a clear and flexible tubing that is resistant to many chemicals. It is manufactured from quality resins that are non-toxic and its smooth interior and exterior prevents sediment accumulation and makes it impervious to bacterial action.

Is polyethylene the same as polyurethane?

While polyethylene and polyurethanes stem from the same plastics family, both materials differ in properties, types of products, and manufacturing processes. Starting with the chemical structure, polyethylene is a type of thermoplastic, while, polyurethanes are thermosets.

How is nylon tubing made?

Nylon tubing is a unique kind of tubing made from polyamide resin. This material is known for its outstanding chemical, abrasion, impact, and moisture resistance and dimensional stability. … In addition to its heat resistant properties, the material’s crystalline structure also gives it high wear and chemical resistance.

What is polypropylene tubing?

Polypropylene tubing is tasteless, flexible, and non-toxic, making it ideal for transferring hot liquids and gases in food and beverage handling applications. It can be used for small fluid system support structures, or as a liner in metal piping systems.

Is polyethylene the same as PEX?

PEX has significantly enhanced properties compared with ordinary PE. … Almost all PEX used for pipe and tubing is made from high-density polyethylene (HDPE). PEX contains cross-linked bonds in the polymer structure, changing the thermoplastic to a thermoset.

Article first time published on

What is HDPE plastic made of?

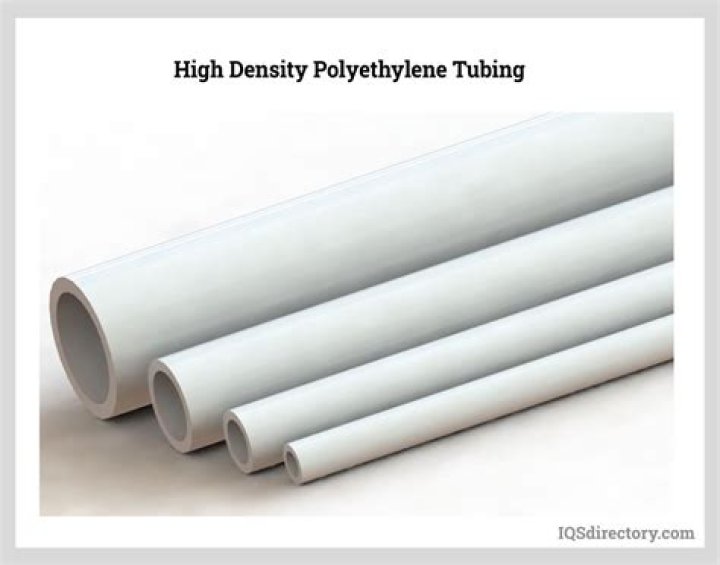

High Density Poly Ethylene (HDPE) is a thermoplastic polymer made from petroleum. As one of the most versatile plastic materials around, HDPE plastic is used in a wide variety of applications, including plastic bottles, milk jugs, shampoo bottles, bleach bottles, cutting boards, and piping.

What is black plastic water pipe made of?

Acrylonitrile butadiene styrene (ABS) — Drainage, waste and vent pipes are the usual application for this black pipe material. It’s impact- and heat-resistant, making it ideal for outdoor use. Because many building codes prohibit its use, however, PVC or HDPE pipes are often used instead.

Why is PEX plumbing bad?

Potential chemical leaching is another downside of PEX piping. Due to its chemical composition, the PEX pipe material may leach toxic chemicals including bisphenol (BPA), MTBE, tertiary butyl alcohol (TBA), and others.

Is copper better than PEX?

We generally belive that Plumbing PEX Tubing is much better than Copper for most, if not all, plumbing systems. … PEX Tubing is much more resistant to freeze-breakage than copper or rigid plastic pipe. PEX Tubing is cheaper because it takes much less labor to install. PEX Tubing is quickly becoming the industry standard.

Is PEX safe for drinking water?

There are no health risks associated with drinking water from PEX pipes. A few types of PEX-pipe may cause prolonged undesirable taste and odour if the water remains in pipes over time.

What is the difference between polyethylene and resin?

Polyethylene is a thermoplastic resin, which means an item made with the material can be recycled, melted down and reformed into another shape. Polyurethane, on the other hand, is a thermoset resin, meaning that it has two parts mixed together to form a chemical chain.

Which is stronger polyethylene or polypropylene?

Polypropylene is not as sturdy as polyethylene. Polypropylene is stiffer and resistant to chemicals and organic solvents compared to polyethylene. Polypropylene is pure, non-stretching and generally more rigid than polyethylene.

Is Poly Pipe HDPE?

of HDPE Pipe. High Density Polyethylene Pipe (HDPE) is a thermoplastic pipe made from material that can be melted and reformed. It is rugged, flexible, and durable. It has outstanding chemical and environmental stress crack resistance.

Is PVC pipe plastic?

You’re probably familiar with PVC pipe. It’s the white plastic pipe commonly used for plumbing and drainage. PVC stands for polyvinyl chloride, and it’s become a common replacement for metal piping.

What is PEX a tubing?

PEX-A is the most flexible of all PEX tubing types, has little or no coil memory and gives installer an ability to repair kinks with a heat gun. It has been in use for over 50 years (which is longer than other types) with few publicly known issues (3), which is a good indicator of reliability.

Is PVC same as polyurethane?

Generally, polyurethane is tackier than PVC. It may stick to itself, which— especially in the case of tubing—can result in tangles. … Material combinations such as PVC/polyurethane blends can also change the surface characteristics, but PVC by itself has a naturally slipperier surface than 100% polyurethane.

What is polyurethane hose?

Polyurethane Hose (PU) Polyurethane hose provides the solution where PVC struggles, featuring excellent resistance to most petroleum-based chemicals. This makes it an ideal choice for use in most fuel lines, although testing might be necessary in some cases. Polyurethane hose can also handle much lower temperatures.

Is tygon tubing oil resistant?

The Tygon formulation F-4040-A plastic construction is designed for use with various fuels and lubricants, including gasoline, kerosene, heating oils, cutting compounds, and glycol-based coolants. It resists the swelling, hardening, and embrittlement typically caused by hydrocarbon-based fluids.

How are hollow plastic tubes made?

The hot melt strip or slug is fused onto the end of the sleeve and then transferred onto the mold station. At this point, in one operation, the angle of the shoulder, the thread and the orifice are molded at the end of the sleeve. The head is then cooled, removed from the mold, and transferred into a pin conveyor.

How are vinyl tubes made?

Like most other plastic tubing products, vinyl tubing is most commonly produced through extrusion. Plastic extrusion is the process by which raw plastic materials are thermoformed (heat formed). … A die is a specially designed tool that is used to shape raw materials into a usable product.

What are plastic pipes used for?

Plastic pipework is used for the conveyance of drinking water, waste water, chemicals, heating fluid and cooling fluids, foodstuffs, ultra-pure liquids, slurries, gases, compressed air, irrigation, plastic pressure pipe systems, and vacuum system applications.

What is the difference between polybutylene and polyethylene?

There are two common types of plastic piping which are known as PB (Polybutylene) and PEX (Cross-linked Polyethylene). The main difference between PB and PEX is in how the material is created. The polymer chains in PEX are bonded to each other; this is called cross-linking and does not happen in PB pipes.

What is the difference between polypropylene and PVC?

Polypropylene is like a smooth, flexible sheet of tear-resistant, scratch-resistant paper. … PVC is more environmentally toxic than polypropylene, both during its product life and after disposal. PVC includes chlorine and is often made with lead stabilizers and plasticizers (usually phthalates).

Can you use SharkBite on polyethylene?

SharkBite PEX fittings make it easy to transition between pipe types during repairs. Fast, efficient and reliable, our transition fittings are compatible with Polybutylene, PEX, PVC, CPVC, PE-RT and HDPE, and are approved for behind-the-wall installation as well as burial.

How can you tell if plastic is HDPE?

High-density polyethylene, also known as HDPE, is a strong plastic used to make jugs and bottles for short-term storage. To determine if a container is made form HDPE, look for a number 2 inside the three-arrow recycling symbol.

What is LDPE plastic?

LDPE (low density polyethylene) is a soft, flexible, lightweight plastic material. LDPE is noted for its low temperature flexibility, toughness, and corrosion resistance.
