What is a tombstone in electrical

Tombstones, also sometimes called sockets, are small internal components of a fluorescent or LED fixture. They are responsible for connecting the electrical wires from one end of the fixture to the other and receiving the current of electricity which powers the lamp into creating illumination.

How do you test a tombstone?

Pull the tombstone off the fixture. In some fixtures, they are secured with screws. Touch the probes to the power and neutral wire. If there is no reading, the problem is with the tombstone wires.

What is the difference between a shunted and non shunted tombstone?

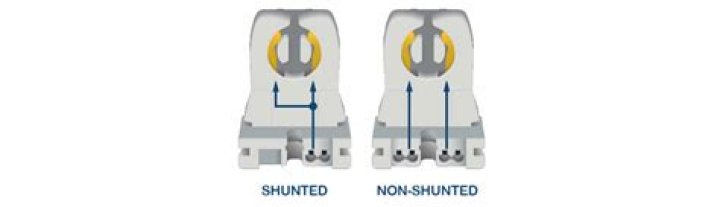

Shunted sockets feature internally connected electrical contacts. This provides a single track for the electrical current to travel from the ballast, through the tombstone, or socket, and to the lamp’s pins. … Non-shunted sockets have contacts that are not joined or connected.

What are yellow wires for on ballast?

The two yellow wires complete the circuit through the fluorescent tube back into the ballast. The red and blue wires energize the pins the fluorescent tube is attached to, the yellow wires connect to the pins on the opposite ends of the fluorescent light tubes completing the circuit.

How do you convert shunted to non shunted tombstone?

It’s perfectly ok to modify shunted tombstones in order to connect double ended LED tubes – cut all wires entering the tombstone then wire them directly to either power or neutral, your choice. Make sure the opposite tombstone is neutral if other positive or the converse. Make sure you really have a shunted tombstone.

How can you tell if a gravestone is bad?

If your existing light fixture shows positive continuity when testing both contacts on a single socket (usually the meter will beep), there is power flowing between the two contacts, and this is a shunted tombstone.
If there is no power between contacts, it is a non-shunted tombstone.

How do you connect LED lights to a 12 volt battery?

First, press the power button on the battery and ensure that the 12V output is selected. Then, simply plug in one end of the DC cable into the battery port marked “DC output.” Then, plug the other end into the barrel jack end of the LED strip. That’s it!

What are the signs of a bad ballast?

Buzzing. If you hear a strange sound coming from your bulbs or light fixture, like a buzzing or humming noise, that’s often a sign your ballast is going. …
Dimming or flickering. …
No lights at all. …
Changing colors. …
Swollen casing. …
Burn marks. …
Water damage. …
Leaking oil.

How many volts is a fluorescent light normally?

Fluorescent lamps use a ballast which transforms line voltage to a voltage to start up and operate the lamp(s). Newer fluorescent ballasts are usually rated for both 120 volts and 277 volts. Some are rated for only 120 volts, others for only 277 volts (used in commercial environments).

What's a ballast for lights?

In a fluorescent lighting system, the ballast regulates the current to the lamps and provides sufficient voltage to start the lamps. Without a ballast to limit its current, a fluorescent lamp connected directly to a high voltage power source would rapidly and uncontrollably increase its current draw.

Article first time published on

What are the blue wires on a ballast?

The ballast has a hot and neutral wire at one end to receive power, and two blue wires a red one at the other end to supply power to the lights.

Which color wires go together?

FunctionlabelColor, commonProtective groundPGbare, green, or green-yellowNeutralNwhiteLine, single phaseLblack or red (2nd hot)Line, 3-phaseL1black

What happens if you use wrong ballast?

If you use a wrong sized ballast the LRC will not be tuned so you are likely to not start the lamp at all. There is the possibility of burning out components pre-maturely also due to overcurrent and overvoltage conditions particularly if using a larger ballast on a smaller fixture.

How do you remove a tombstone?

A headstone should only be removed from the graveyard by a community-based group or local official acting within the limits of local and state law or operating with the knowledge of the descendants of the deceased. In most circumstances, it is preferable to repair a headstone rather than remove it.

Can you convert non shunted to shunted?

Something that many people aren’t aware of is the fact that a non-shunted lampholder can be converted to a shunted one if necessary. This is typically done using a very simple process. You can cut a wire and insert one end of the shortened wire into the left side of the unit.

Are T8 and T12 tombstones the same?

T12 tubes are 1.5″ in diameter while T8s are just one inch. All other things—socket sizes, lengths, distance between pins—are the same. T8 LED tubes won’t fall out if you try to install them in a T12 fixture—they’ll fit just fine.

Do fluorescent lights use shunted or non shunted?

In fluorescent fixtures, shunted sockets are only used with instant start ballasts and the non-shunted sockets are used with dimming, pre-heat, program start, rapid start, and trigger ballasts.

Will ballast compatible LED tubes work without a ballast?

If the LED tube is not compatible with your ballast, you would then need to replace your ballast in addition to the T8 LED tube. … The T8 LED tube won’t work without the ballast, so you are forced to continue buying and replacing ballasts as long as you have an LED tube that is ONLY ballast dependent.

Do LED tube lights need a ballast?

No LED bulbs require a ballast, although some are engineered to work with an existing ballast. You will find ballast-compatible or “plug-and-play” LEDs that are designed to replace linear fluorescents, compact fluorescents, or HIDs. Incandescent and halogen lamps do not require a ballast.

What does ballast bypass mean?

A ballast bypass is when the ballast is removed and the lamp receives its energy source directly from the sockets. This is option may also be called line voltage or direct wire linear LED.

Can I connect a LED directly to a battery?

Never connect an LED directly to a battery or power supply because the LED is likely to be destroyed by excessive current passing through it. resistor is suitable for most LEDs if your supply voltage is 12V or less.

Can you connect LED lights directly to a battery?

An LED has almost no internal resistance. Therefore, if you hook it up directly to a battery, it will burn out quickly as the current flows unimpeded through the LED. you must add a resistor to the LED circuit. This tutorial explains how to calculate the resistance needed.

What are the 3 wires on LED lights?

LED Lights with 3 wires will be a multi-function light. They can (most times) be used in whatever configuration is right for your application. For example, running and brake, running and blinker or brake and blinker. These LED’s will usually have a black, red and white wire.

What are the 4 wires on LED lights?

RGB strip light has a 4-wire connection, where green, red and blue are for the green, red and blue LEDs, and the black/white wire is the common +12V connection.

Do LED lights require special wiring?

LED lights don’t need special wiring. They’ll work with any standard light fixture, as long as it isn’t enclosed, which could cause heat damage. Poor wiring can cause electrical interference, but this is easily solved with a suppressor.
